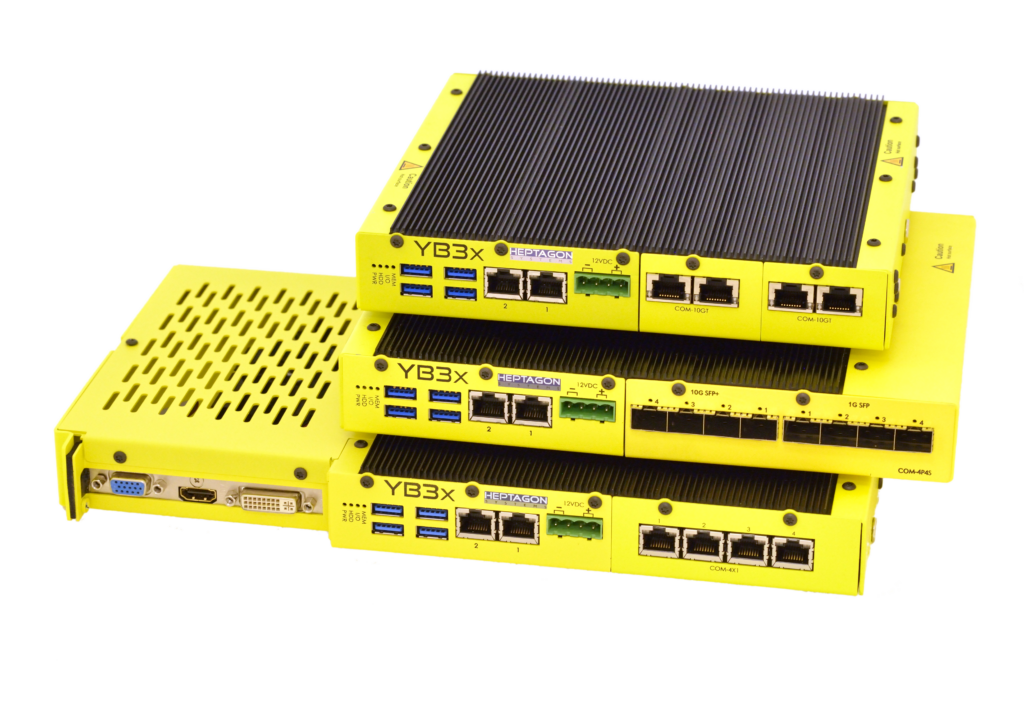

Heptagon Systems YB3x is a series of rugged fanless vCPE / IOT servers for embedded and communication application in harsh environments.
Designed with flexibility and customization in mind, the YB3x offers 7 Ethernet port configurations to accommodate for a variety of use cases. Custom configurations can easily be added with a short turnaround time.
Based on the Intel® Atom® C3000 SOC, 4-16-core processor, 128GB DDR4-ECC memory and integrated Quad 10Gb Ethernet, the YB3x creates a whole new performance level for embedded computing.
- Intel Atom® C3000, 4-16 cores
- Compact 1U enclosure
- Fanless cooling
- Maintenance-free
- -40°C to +72°C range
- Optional PCIe add-on card (AOC)
YB3x Model selection
| Model | 1GbE RJ45 | 1GbE SFP | 10GbE RJ45 | 10GbE SFP+ | Total ports | BMC w/DP | SSD* | PCIe Slot |
|---|---|---|---|---|---|---|---|---|
| Bare | 2 | 0 | 0 | 0 | 2 | Optional | 3 | Optional |
| SFP+ | 2 | 0 | 0 | 2 | 4 | Optional | 3 | Optional |
| T | 2 | 0 | 2 | 0 | 4 | Optional | 3 | Optional |
| ST | 2 | 0 | 2 | 2 | 6 | Optional | 3 | Optional |
| TT | 2 | 0 | 4 | 0 | 6 | Optional | 3 | Optional |
| Ten | 2 | 4 | 0 | 4 | 10 | Optional | 3 | Optional |
| Six | 6 | 0 | 0 | 0 | 6 | Optional | 3 | Optional |

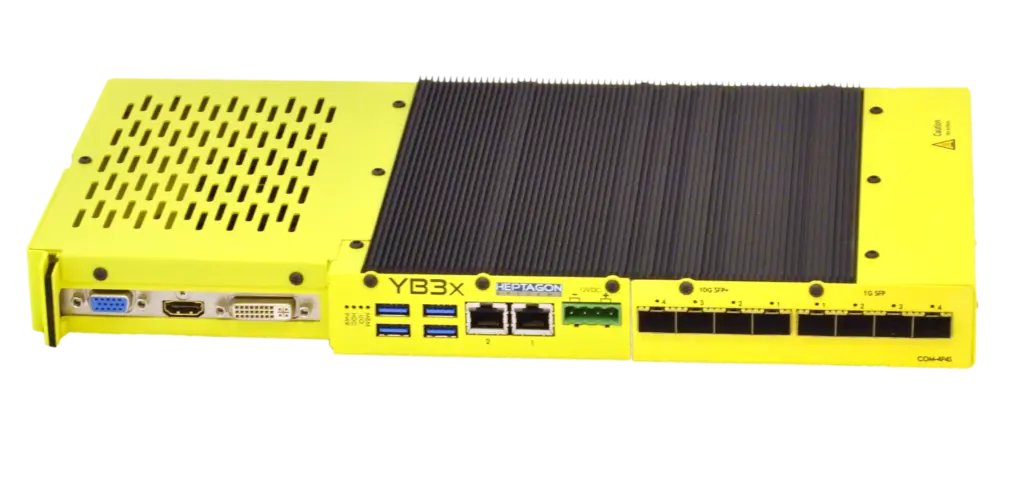

The AOC option
One of the YB3x distinctive features is its optional slot for a standard PCIe Add-On card (AOC) which allows for adding numerous options (e.g., x12 GbE port).
Available models
YB3x Bare
Rugged Fanless vCPE
- 2x GbE, Intel i210
- Two slots of communication modules
YB3 T, TT
Dual / Quad 10G copper (RJ45)
- 4x or 2x 10G Base-T (Intel SOC)
- 2x GbE, Intel i210
YB3 SIX
6 GbE ports
- 4x GbE (Intel SOC)
- 2x GbE, Intel i210
YB3 SFP+
Dual SFP+
- 2x 10G SFP+ (Intel SOC)
- 2x GbE, Intel i210
YB3 ST
Dual SFP+ and Dual 10G RJ-45
- 2x 10G SFP+ (Intel SOC)
- 2x 10G Base-T (Intel SOC)
- 2x GbE, Intel i210
YB3 TEN
Quad SFP+ and Quad SFP
- 4x 10G SFP+ (Intel SOC)
- 4x 1G SFP (Intel i350)
- 2x GbE, Intel i210
